基于pandoc的MarkDown格式与word相互转换小工具开发（pyqt5）

开发目标

• 采用word格式模板，实现高级定制样式。
• 具备配置保存功能，方便快捷。
• 自定义转换选项、pandoc路径。

准备工作

开发环境：Win10 + Visual Studio Code
开发语言：python3.8
pandoc下载地址

https://github.com/jgm/pandoc/releases

解压缩后即得到直接使用的二进制文件pandoc.exe。
在python安装目录下执行，安装pyqt5库（PyQt5和pyqt5-tools为必选项，PyQtChart非必需）：

.\python.exe -m pip install PyQt5 -i https://pypi.tuna.tsinghua.edu.cn/simple
.\python.exe -m pip install pyqt5-tools -i https://pypi.tuna.tsinghua.edu.cn/simple
.\python.exe -m pip install PyQtChart -i https://pypi.tuna.tsinghua.edu.cn/simple

在python安装目录下执行，安装pypandoc库：

.\python.exe -m pip install pypandoc -i https://pypi.tuna.tsinghua.edu.cn/simple

在python安装目录下执行，安装打包工具pyinstaller库：

.\python.exe -m pip install pyinstaller -i https://pypi.tuna.tsinghua.edu.cn/simple

在VS Code自定义设置文件settings.json，添加以下内容，明确pandoc路径：

"terminal.integrated.env.windows": {"PATH": "${env:PATH};D:\\noinst\\Python\\Python38-x64-pyqt5\\Scripts;D:\\noinst\\pandoc-3.6.3"},

源代码

VS Code中新建一个py文件，将以下内容复制进去：

import sys
import os
import time
import configparser
from PyQt5.QtWidgets import (QApplication, QMainWindow, QWidget, QVBoxLayout, QHBoxLayout,QLabel, QLineEdit, QPushButton, QFileDialog, QMessageBox,QCheckBox, QGroupBox, QProgressBar, QComboBox
)
from PyQt5.QtGui import QIcon
from PyQt5.QtCore import QThread, pyqtSignal, QSettings
import pypandoc# 配置文件路径
CONFIG_FILE = "config.ini"class ConvertThread(QThread):"""用于后台执行转换任务的线程"""progress_updated = pyqtSignal(int)conversion_finished = pyqtSignal(bool, str)def __init__(self, input_path, output_path, options):super().__init__()self.input_path = input_pathself.output_path = output_pathself.options = optionsdef run(self):try:extra_args = []if self.options.get('use_template') and self.options.get('template_path'):extra_args.extend(["--reference-doc", self.options['template_path']])if self.options.get('add_toc'):extra_args.append("--toc")if self.options.get('metadata_title'):extra_args.extend(["--metadata", f"title={self.options['metadata_title']}"])# 模拟进度# for i in range(5):#     time.sleep(0.1)#     self.progress_updated.emit(i * 20)if self.options['conversion_direction'] == 'md_to_docx':pypandoc.convert_file(self.input_path,'docx',outputfile=self.output_path,format='markdown',extra_args=extra_args)else:  # docx_to_mdpypandoc.convert_file(self.input_path,'markdown',outputfile=self.output_path,format='docx',extra_args=extra_args)self.progress_updated.emit(100)self.conversion_finished.emit(True, self.output_path)except Exception as e:self.conversion_finished.emit(False, str(e))class MarkdownWordConverter(QMainWindow):def __init__(self):super().__init__()self.config = configparser.ConfigParser()self.load_config()  # 加载配置self.init_ui()self.check_pandoc()def init_ui(self):self.setWindowTitle("Markdown2Word")icon = QIcon("output.ico")self.setWindowIcon(icon)self.setGeometry(int(self.config.get('UI', 'window_x', fallback=100)),int(self.config.get('UI', 'window_y', fallback=100)),int(self.config.get('UI', 'window_width', fallback=600)),int(self.config.get('UI', 'window_height', fallback=450)))self.central_widget = QWidget()self.setCentralWidget(self.central_widget)self.main_layout = QVBoxLayout()self.central_widget.setLayout(self.main_layout)# Pandoc配置self.pandoc_group = QGroupBox("Pandoc配置 (必填)")self.pandoc_layout = QHBoxLayout()self.pandoc_label = QLabel("Pandoc路径:")self.pandoc_line_edit = QLineEdit(self.config.get('PATHS', 'pandoc_path', fallback=""))self.pandoc_browse_button = QPushButton("浏览...")self.pandoc_browse_button.clicked.connect(self.browse_pandoc_path)self.pandoc_layout.addWidget(self.pandoc_label)self.pandoc_layout.addWidget(self.pandoc_line_edit)self.pandoc_layout.addWidget(self.pandoc_browse_button)self.pandoc_group.setLayout(self.pandoc_layout)self.main_layout.addWidget(self.pandoc_group)# 转换方向self.direction_group = QGroupBox("转换方向")self.direction_layout = QHBoxLayout()self.conversion_direction = QComboBox()self.conversion_direction.addItems(["Markdown → Word", "Word → Markdown"])self.conversion_direction.currentTextChanged.connect(self.toggle_direction)self.direction_layout.addWidget(QLabel("选择方向:"))self.direction_layout.addWidget(self.conversion_direction)self.direction_group.setLayout(self.direction_layout)self.main_layout.addWidget(self.direction_group)# 文件选择self.file_group = QGroupBox("文件选择")self.file_layout = QVBoxLayout()# 输入文件self.input_layout = QHBoxLayout()self.input_label = QLabel("输入文件:")self.input_line_edit = QLineEdit(self.config.get('PATHS', 'last_input_path', fallback=""))self.input_browse_button = QPushButton("浏览...")self.input_browse_button.clicked.connect(self.browse_input_file)self.input_layout.addWidget(self.input_label)self.input_layout.addWidget(self.input_line_edit)self.input_layout.addWidget(self.input_browse_button)self.file_layout.addLayout(self.input_layout)# 输出文件self.output_layout = QHBoxLayout()self.output_label = QLabel("输出文件:")self.output_line_edit = QLineEdit(self.config.get('PATHS', 'last_output_path', fallback=""))self.output_browse_button = QPushButton("浏览...")self.output_browse_button.clicked.connect(self.browse_output_file)self.output_layout.addWidget(self.output_label)self.output_layout.addWidget(self.output_line_edit)self.output_layout.addWidget(self.output_browse_button)self.file_layout.addLayout(self.output_layout)self.file_group.setLayout(self.file_layout)self.main_layout.addWidget(self.file_group)# 转换选项self.options_group = QGroupBox("转换选项")self.options_layout = QVBoxLayout()# 模板选项self.template_layout = QHBoxLayout()self.use_template_check = QCheckBox("使用Word模板")self.use_template_check.setChecked(self.config.getboolean('SETTINGS', 'use_template', fallback=False))self.template_line_edit = QLineEdit(self.config.get('PATHS', 'template_path', fallback=""))self.template_line_edit.setEnabled(self.use_template_check.isChecked())self.template_browse_button = QPushButton("选择模板...")self.template_browse_button.setEnabled(self.use_template_check.isChecked())self.template_browse_button.clicked.connect(self.browse_template_file)self.use_template_check.stateChanged.connect(self.toggle_template_options)self.template_layout.addWidget(self.use_template_check)self.template_layout.addWidget(self.template_line_edit)self.template_layout.addWidget(self.template_browse_button)self.options_layout.addLayout(self.template_layout)# 其他选项self.add_toc_check = QCheckBox("添加目录 (仅Markdown→Word)")self.add_toc_check.setChecked(self.config.getboolean('SETTINGS', 'add_toc', fallback=False))self.metadata_layout = QHBoxLayout()self.metadata_label = QLabel("文档标题:")self.metadata_edit = QLineEdit(self.config.get('SETTINGS', 'metadata_title', fallback=""))self.metadata_layout.addWidget(self.metadata_label)self.metadata_layout.addWidget(self.metadata_edit)self.options_layout.addWidget(self.add_toc_check)self.options_layout.addLayout(self.metadata_layout)self.options_group.setLayout(self.options_layout)self.main_layout.addWidget(self.options_group)# 进度条self.progress_bar = QProgressBar()self.main_layout.addWidget(self.progress_bar)# 转换按钮self.convert_button = QPushButton("开始转换")self.convert_button.clicked.connect(self.start_conversion)self.main_layout.addWidget(self.convert_button)# 信号连接self.conversion_direction.currentIndexChanged.connect(self.update_ui_for_direction)self.update_ui_for_direction()def load_config(self):"""加载配置文件"""self.config.read(CONFIG_FILE, encoding='utf-8')if not self.config.has_section('PATHS'):self.config.add_section('PATHS')if not self.config.has_section('SETTINGS'):self.config.add_section('SETTINGS')if not self.config.has_section('UI'):self.config.add_section('UI')def save_config(self):"""保存配置文件（UTF-8编码）"""self.config.set('PATHS', 'pandoc_path', self.pandoc_line_edit.text())self.config.set('PATHS', 'last_input_path', self.input_line_edit.text())self.config.set('PATHS', 'last_output_path', self.output_line_edit.text())self.config.set('PATHS', 'template_path', self.template_line_edit.text())self.config.set('SETTINGS', 'use_template', str(self.use_template_check.isChecked()))self.config.set('SETTINGS', 'add_toc', str(self.add_toc_check.isChecked()))self.config.set('SETTINGS', 'metadata_title', self.metadata_edit.text())# 窗口状态self.config.set('UI', 'window_x', str(self.x()))self.config.set('UI', 'window_y', str(self.y()))self.config.set('UI', 'window_width', str(self.width()))self.config.set('UI', 'window_height', str(self.height()))# 关键修改：使用utf-8编码写入with open(CONFIG_FILE, 'w', encoding='utf-8') as f:self.config.write(f)def closeEvent(self, event):"""窗口关闭时保存配置"""self.save_config()event.accept()def check_pandoc(self):"""检查Pandoc是否可用"""config_path = self.pandoc_line_edit.text()if config_path and os.path.exists(config_path):return Truetry:default_path = pypandoc.get_pandoc_path()self.pandoc_line_edit.setText(default_path)return Trueexcept:self.pandoc_line_edit.setPlaceholderText("未检测到Pandoc，请手动指定路径")return Falsedef browse_pandoc_path(self):"""选择Pandoc可执行文件"""if sys.platform == "win32":file_filter = "Executable Files (*.exe)"default_path = "C:\\Program Files\\Pandoc\\pandoc.exe"else:file_filter = ""default_path = "/usr/local/bin/pandoc"file_path, _ = QFileDialog.getOpenFileName(self, "选择Pandoc可执行文件", self.pandoc_line_edit.text() or default_path, file_filter)if file_path:self.pandoc_line_edit.setText(file_path)os.environ["PATH"] = os.path.dirname(file_path) + os.pathsep + os.environ.get("PATH", "")def update_ui_for_direction(self):"""根据转换方向更新UI"""direction = self.conversion_direction.currentText()self.add_toc_check.setEnabled(direction == "Markdown → Word")if direction == "Markdown → Word":self.input_file_filter = "Markdown文件 (*.md *.markdown)"self.output_file_filter = "Word文档 (*.docx)"else:self.input_file_filter = "Word文档 (*.docx)"self.output_file_filter = "Markdown文件 (*.md)"# self.input_line_edit.clear()# self.output_line_edit.clear()def toggle_direction(self):self.input_line_edit.clear()self.output_line_edit.clear()if self.conversion_direction.currentText() == "Word → Markdown":self.add_toc_check.setCheckState(0)def toggle_template_options(self, state):"""切换模板选项的可用状态"""enabled = state == 2  # Qt.Checkedself.template_line_edit.setEnabled(enabled)self.template_browse_button.setEnabled(enabled)def browse_input_file(self):"""选择输入文件"""file_path, _ = QFileDialog.getOpenFileName(self, "选择输入文件", "", self.input_file_filter)if file_path:self.input_line_edit.setText(file_path)if not self.output_line_edit.text():base_path = os.path.splitext(file_path)[0]if self.conversion_direction.currentText() == "Markdown → Word":output_path = base_path + ".docx"else:output_path = base_path + ".md"self.output_line_edit.setText(output_path)def browse_output_file(self):"""选择输出文件"""file_path, _ = QFileDialog.getSaveFileName(self, "选择输出文件", self.output_line_edit.text() or os.path.expanduser("~"),self.output_file_filter)if file_path:self.output_line_edit.setText(file_path)def browse_template_file(self):"""选择Word模板文件"""file_path, _ = QFileDialog.getOpenFileName(self, "选择Word模板", self.template_line_edit.text() or os.path.expanduser("~"),"Word模板 (*.docx *.dotx)")if file_path:self.template_line_edit.setText(file_path)def validate_inputs(self):"""验证输入是否有效"""errors = []pandoc_path = self.pandoc_line_edit.text()if not pandoc_path or not os.path.exists(pandoc_path):errors.append("请指定有效的Pandoc路径")input_path = self.input_line_edit.text()if not input_path or not os.path.exists(input_path):errors.append("输入文件不存在")if not self.output_line_edit.text():errors.append("请指定输出路径")if self.use_template_check.isChecked():template_path = self.template_line_edit.text()if not template_path or not os.path.exists(template_path):errors.append("模板文件不存在")return errorsdef start_conversion(self):"""开始转换过程"""errors = self.validate_inputs()if errors:QMessageBox.warning(self, "输入错误", "\n".join(errors))return# 设置Pandoc路径pandoc_path = self.pandoc_line_edit.text()os.environ["PATH"] = os.path.dirname(pandoc_path) + os.pathsep + os.environ.get("PATH", "")options = {'conversion_direction': 'md_to_docx' if self.conversion_direction.currentText() == "Markdown → Word" else 'docx_to_md','use_template': self.use_template_check.isChecked(),'template_path': self.template_line_edit.text(),'add_toc': self.add_toc_check.isChecked(),'metadata_title': self.metadata_edit.text()}self.progress_bar.setValue(0)self.convert_button.setEnabled(False)self.convert_thread = ConvertThread(self.input_line_edit.text(),self.output_line_edit.text(),options)self.convert_thread.progress_updated.connect(self.update_progress)self.convert_thread.conversion_finished.connect(self.conversion_complete)self.convert_thread.start()def update_progress(self, value):"""更新进度条"""self.progress_bar.setValue(value)def conversion_complete(self, success, message):"""转换完成处理"""self.convert_button.setEnabled(True)if success:QMessageBox.information(self, "成功", f"转换完成！\n文件已保存到:\n{message}")else:QMessageBox.critical(self, "错误", f"转换失败:\n{message}")self.progress_bar.setValue(0)if __name__ == "__main__":app = QApplication(sys.argv)# app.setStyle("Fusion")  # 现代化界面风格# 首次运行时创建默认配置if not os.path.exists(CONFIG_FILE):with open(CONFIG_FILE, 'w') as f:config = configparser.ConfigParser()config.add_section('PATHS')config.add_section('SETTINGS')config.add_section('UI')config.write(f)converter = MarkdownWordConverter()converter.show()sys.exit(app.exec_())

点击运行，即可。

程序打包

为是程序不依赖于python环境，可移植于其他无Python的计算机上使用，可用pyinstaller包实现程序打包：

python_path\Scripts\pyinstaller.exe -F -w -i xxx.ico py_file.py

其他事项

命令行使用pandoc

在pandoc路径下，命令如下：

.\pandoc.exe test.md -o test.docx --reference-doc=template.docx

如果你希望转换后的 word 的标题、表格、内容字体等都按照预置的配置进行，则可以通过参数指定模板来进行转换，具体步骤如下：

.\pandoc.exe -o custom-reference.docx --print-default-data-file reference.docx

基于修改后的模板进行文档转换

.\pandoc.exe --reference-doc custom-reference.docx test.md -o test.docx

关于pandoc默认表格无边框的说明

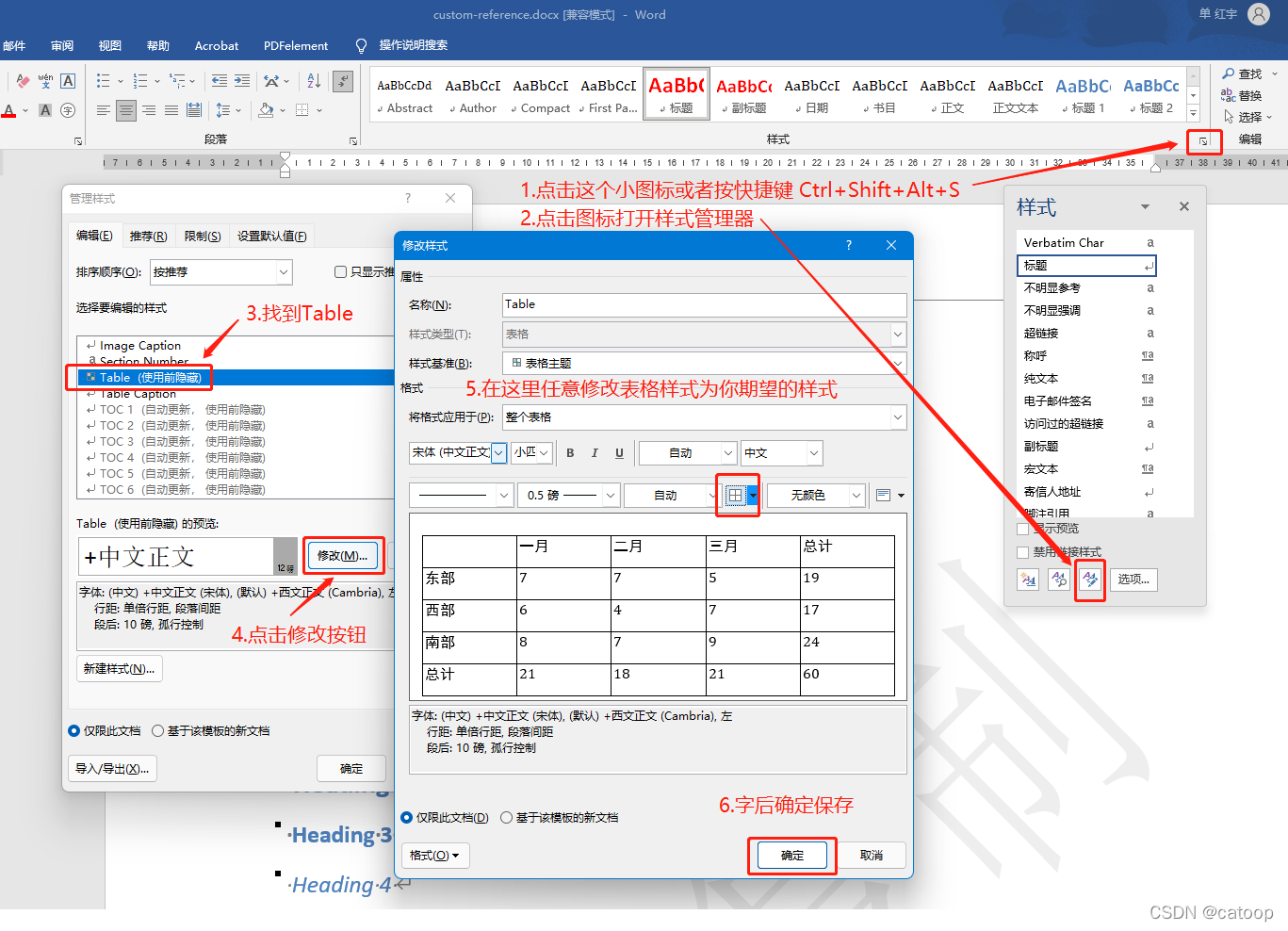

直接修改模板中的表格样式（比如加个边框）是不起作用的，必须修改名称为 Table 的表格样式才有效，具体的修改方法如下图步骤。

其他事项参考：https://blog.csdn.net/catoop/article/details/123878342?spm=1001.2014.3001.5506
